N E W    A C E T Y L E D    P R O J E C T    2 0 2 3

ACETYLED is the new integrated and modular system designed, developed and tested for caving, not just underwater.

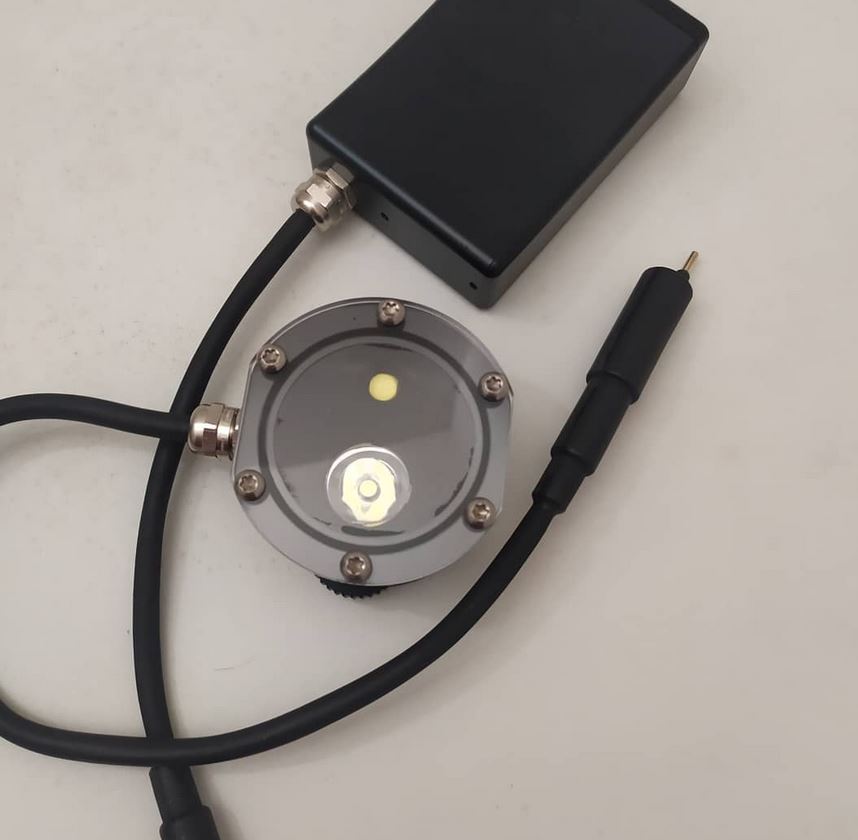

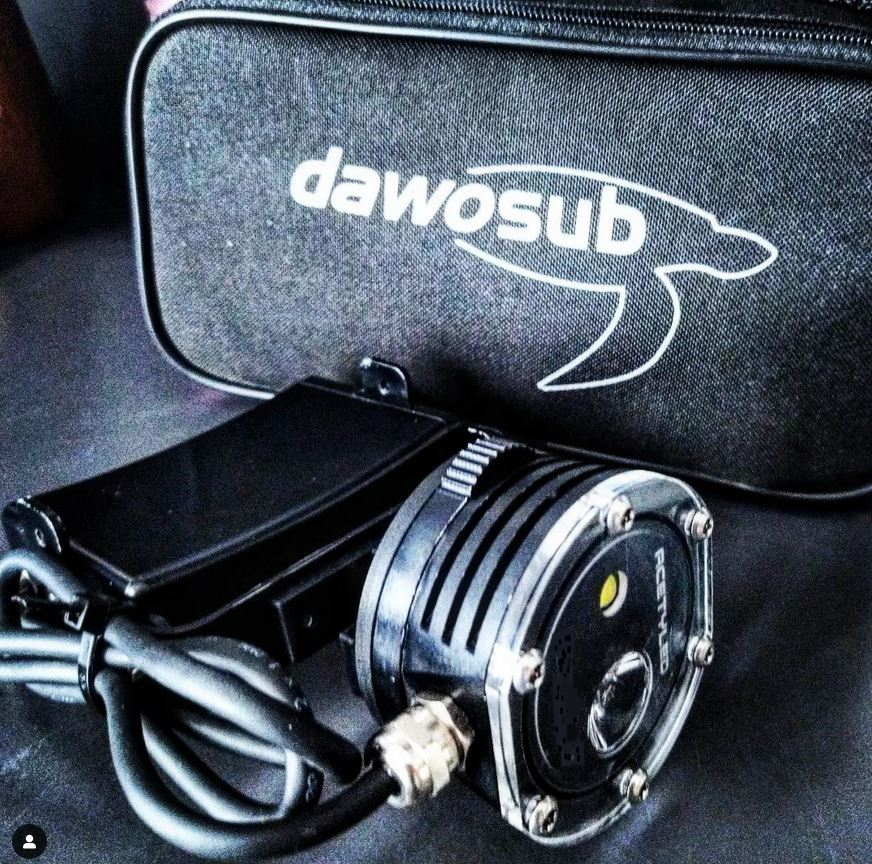

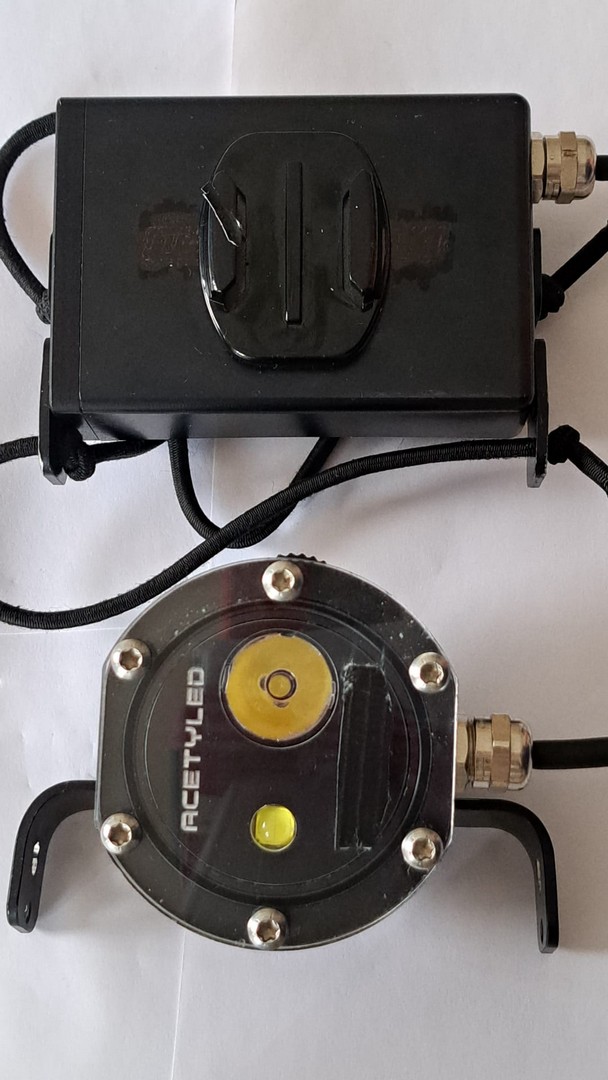

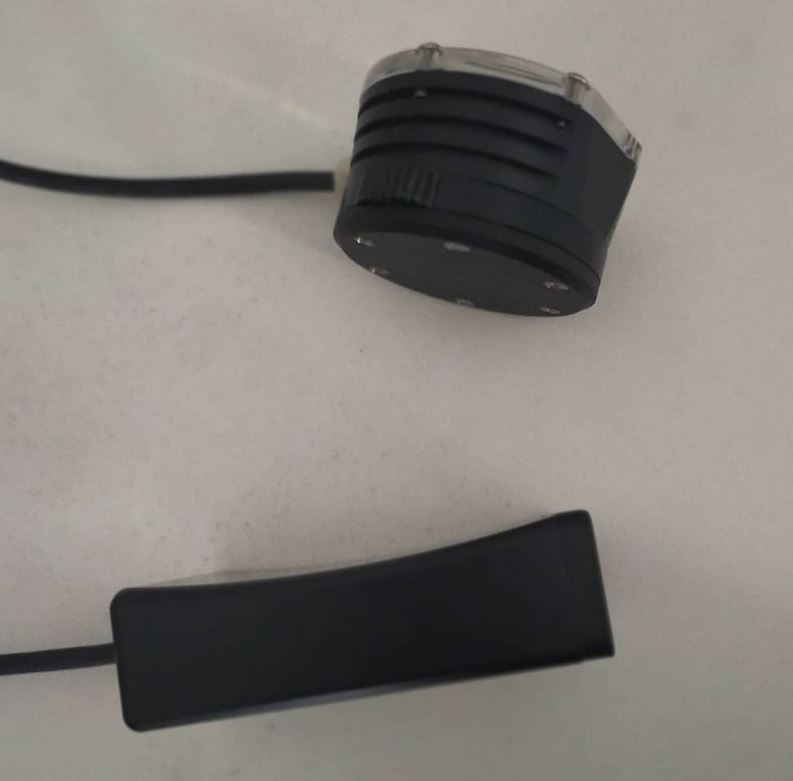

The kit supplied consists of the lighting head, connection cable and 7.4 volt 5 ah battery pack.

This product is certainly the most powerful currently on the market and can develop up to 3400 lumens.

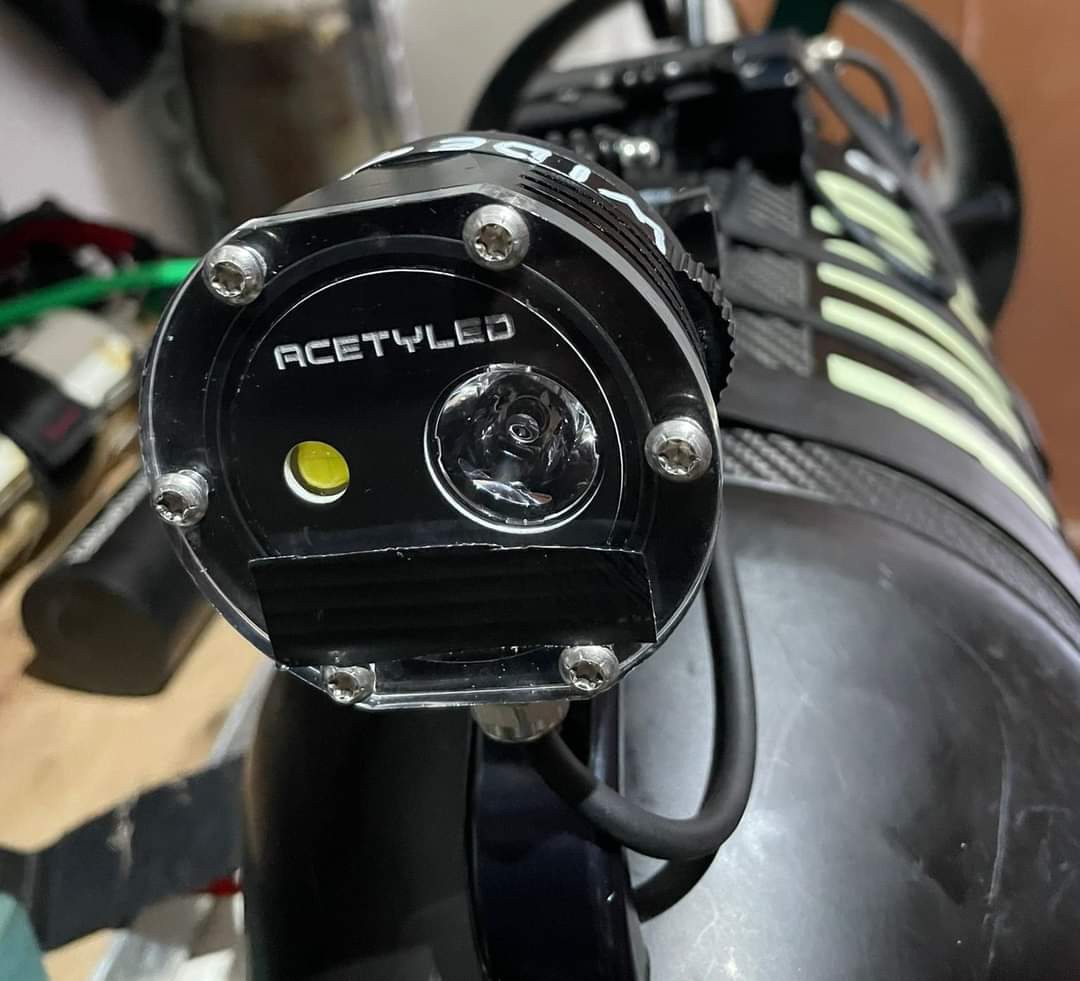

The system uses 2 CREE LEDs with different characteristics and utilities:

1000 lumen SPOT LIGHT  with cold, concentrated, full and penetrating light for long distances  and for team signals with the possibility of choosing between 2 light  intensity modes, 50% and 100%.
2400 lumen WIDE LIGHT, warmer and used as a proximity lighting, with an angle of about 120 ┬░ and has 4 power modes, from 7% to 100%.

The  latter is also designed for prolonged use in a dry cave, where its low  consumption and its electronics optimized to obtain extremely high  efficiency allow autonomy, at minimum power and with the basic battery,  of about 29 hours. .

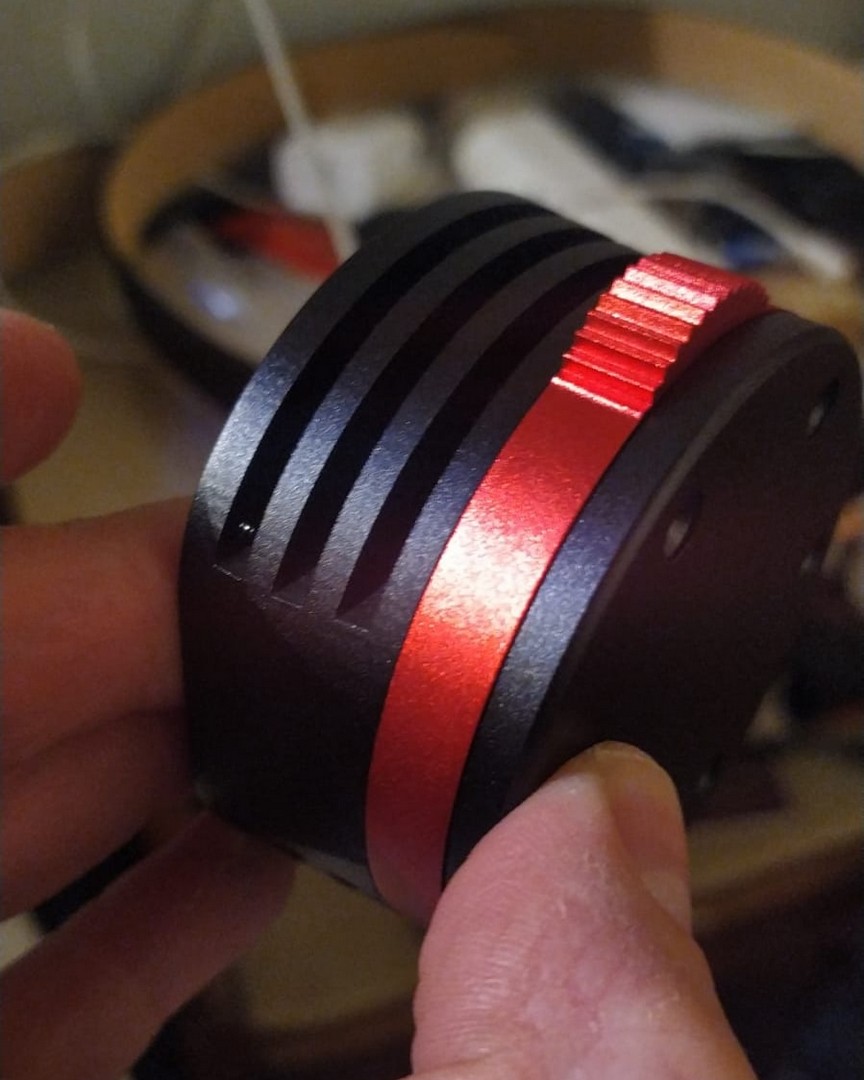

Both  light sources can be selected independently, together or separately, in  an incredibly intuitive way, on different power levels, all easily  managed through a rotary switch with an electromagnetic contact ignition  system;

Automatic cut off system

A  great strength is the possibility of using the ACETYLED with 12V  current therefore, by using a cable and or cord (sold separately), the  power supply can pass from the battery pack, for example placed on the  helmet, to a dedicated Canister. or simply to that of the primary  lighting source a
with double connector.

In this way, the duration of the #cavelight light source multiplies, extending for tens of hours.

Weight: about 880 gr in the air (in the basic head + battery configuration)

The  performance test is of capital importance and is carried out to verify  the achievement of the project objectives and this whole phase is  carried out by Mario Marconi, whose contribution was fundamental.

854 EURO

Mario Marconi
Technical-Full Cave
CCR Instructor/Trainer
member of @the_explorers_club

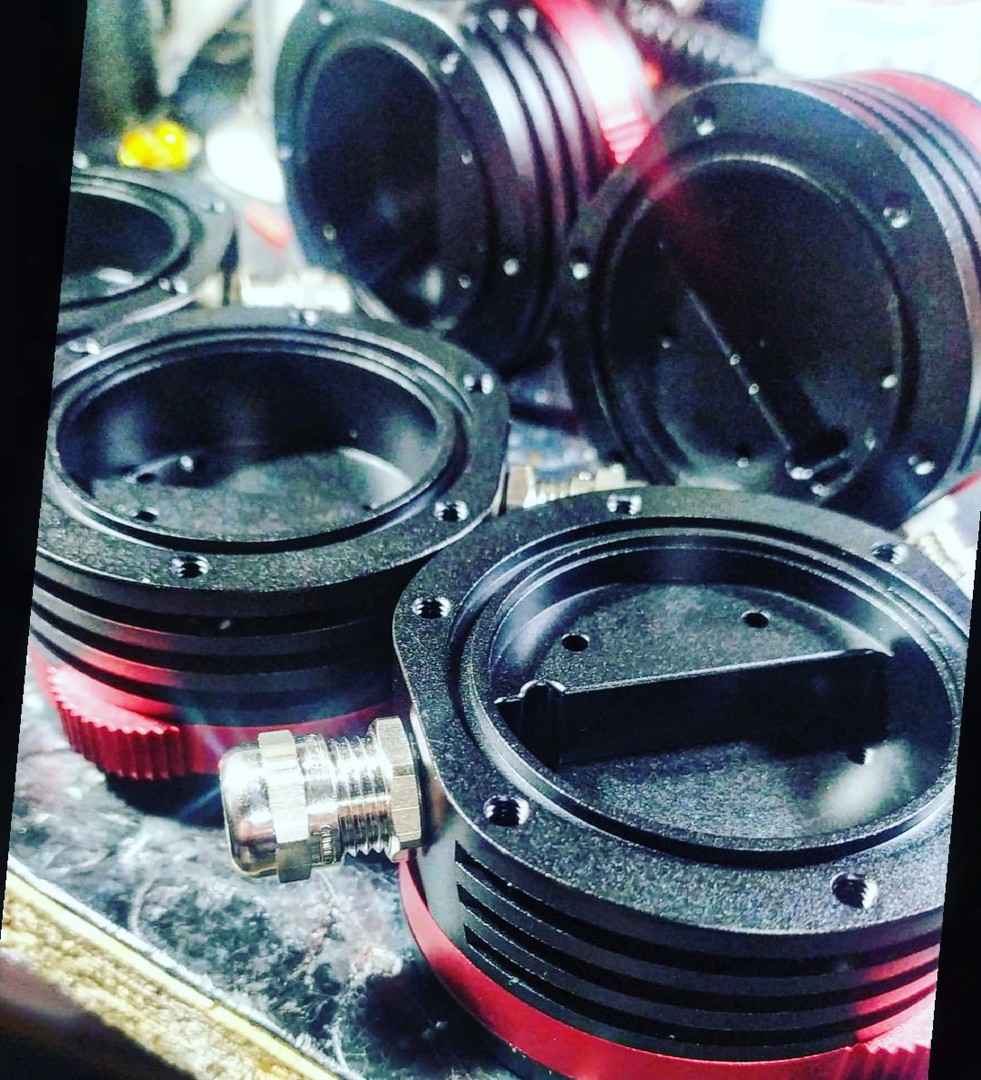

This product is made to order, it is totally handmade by skilled
craftsmen and technicians.
Production time 30 days
Possibility of customization
Created by Aldo & Walter
